500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film

Place of Origin : Shandong, China

Brand Name : SANWEI

Certification : CE ISO

Packaging Details : Suitable Delivery And Protect The Machine

Supply Ability : 100 Set/Sets per Quarter

Price : $7,750.00/sets >=1 sets

Application : Plastic Recycling

Condition : New

Automatic Grade : Automatic

Production Capacity (kg/h) : 500

Voltage : Customer Required

Dimension(L*W*H) : depend on the model

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Retail

Showroom Location : None

After-sales Service Provided : Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

Raw material : PP PE HDPE LDPE LLDPE

Product name : plastic recycling machine

Keywords : PE film washing recycling machine

Function : HDPE LDPE LLDPE washing recycling line

Usage : PE film washing recycling machine

Final product : Clean Plastic Flakes

Type : plastic recycling machine

Output : 500-2500kg/h

Material Processed : Crushing-washing-drying

Port : QINGDAO

Contact Now

Product Description

HDPE LDPE LLDPE washing plant plastic PP woven bags PE film washing recycling machine line

Material: Plastic Bag, PP Woven Bag, Plastic Film, Agricultural film, Plastic garbage etc.

Finished product: clean and dry plastic flakes

Flake size: 30-40mm or customized

Working Process:
1. Material Conveying → 2. Crushing → 3. Friction Washing and Loading→ 4. Flotation Washing → 5. 2nd Flotation Washing → 6. Drying → 7. Product Collecting

Description

This PP/PE flakes washing and drying line is suitable for high capacity. It is a whole line consists conveyor , crusher, washing tank and dewatering machine. It is an automatic production line which produces high quality production.

Automatically works, conveying material, crushing, washing, drying.

We also have plastic film granulators, if you need it please contact with me.

HDPE LDPE LLDPE washing plant plastic PP woven bags PE film washing recycling machine line
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film

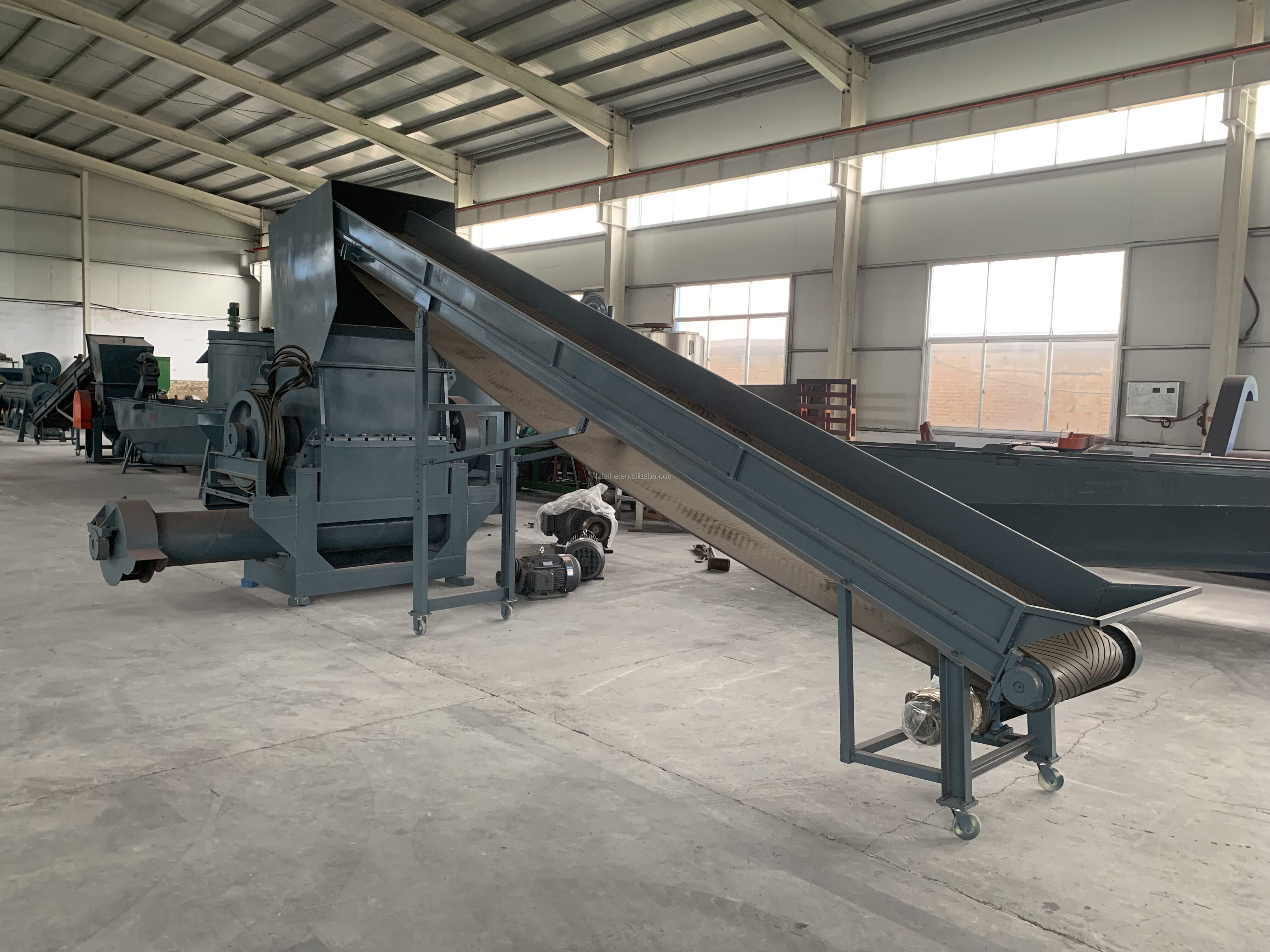

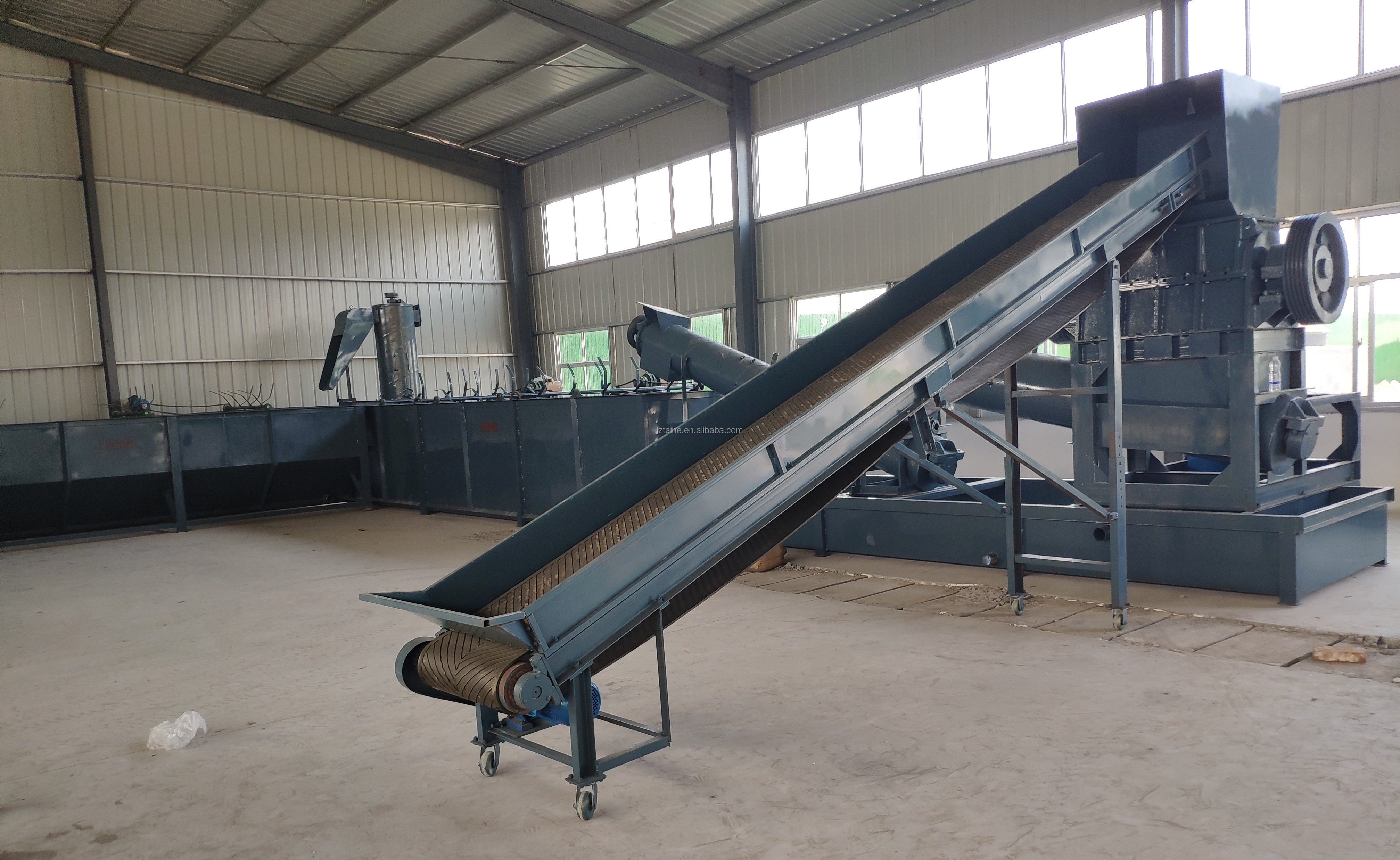

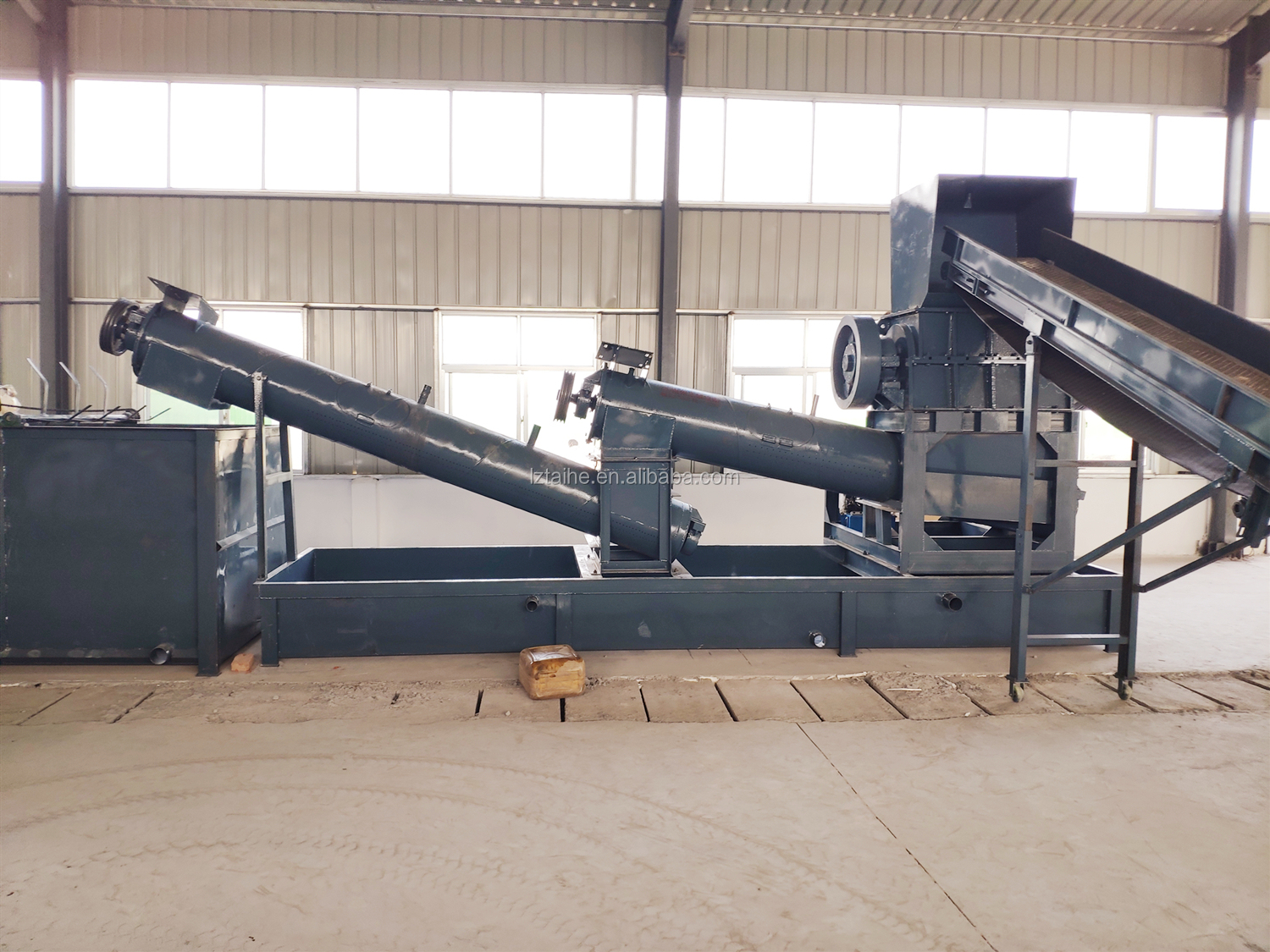

Plastic crusher with conveyor and friction washing machine
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film

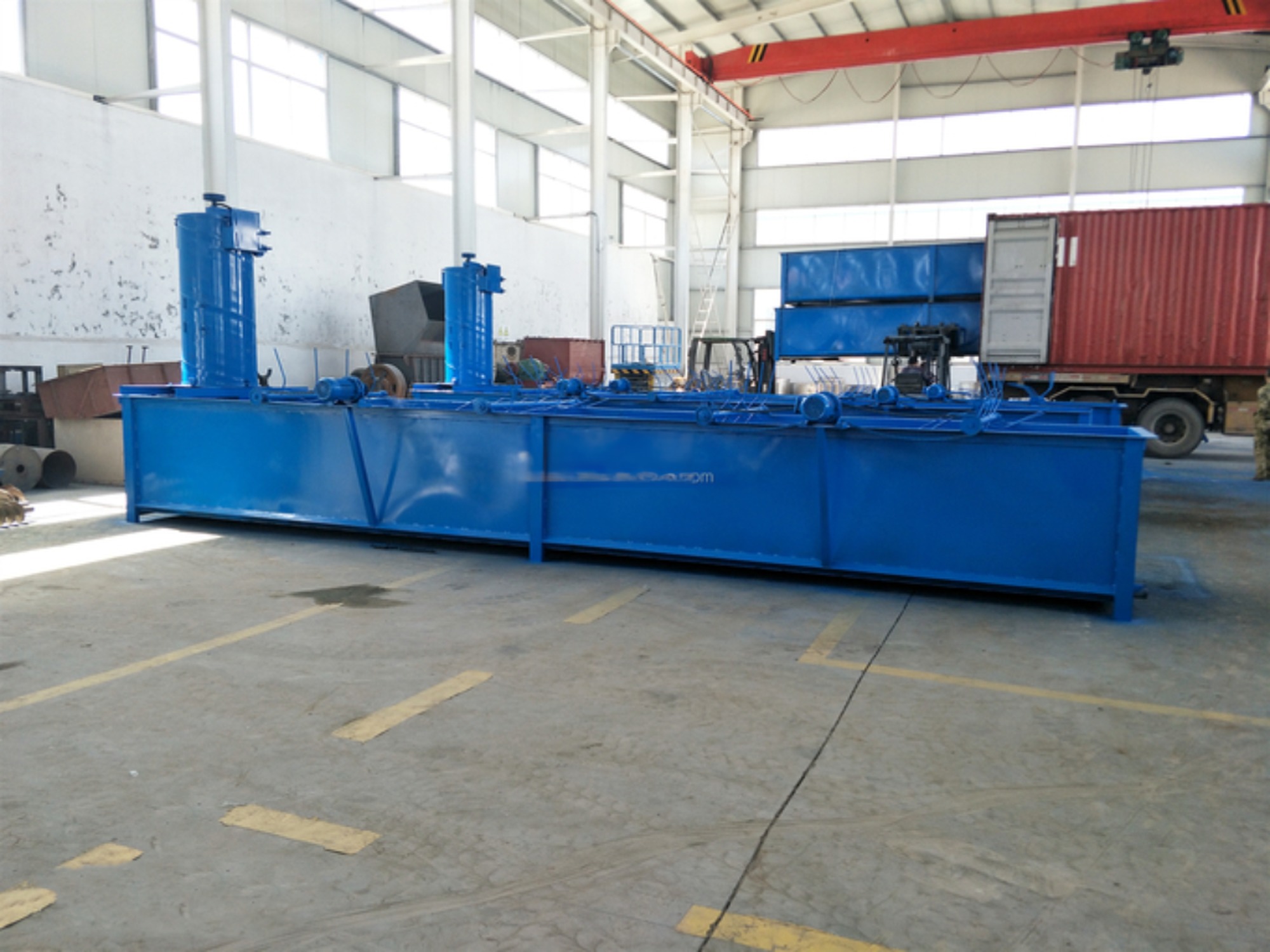

Floating washing tank
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film

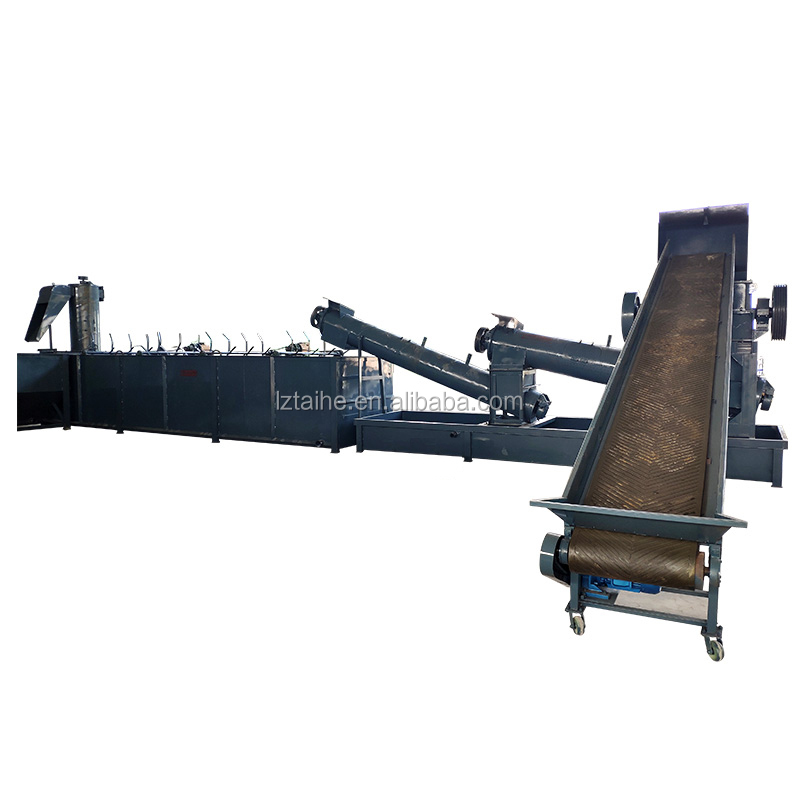

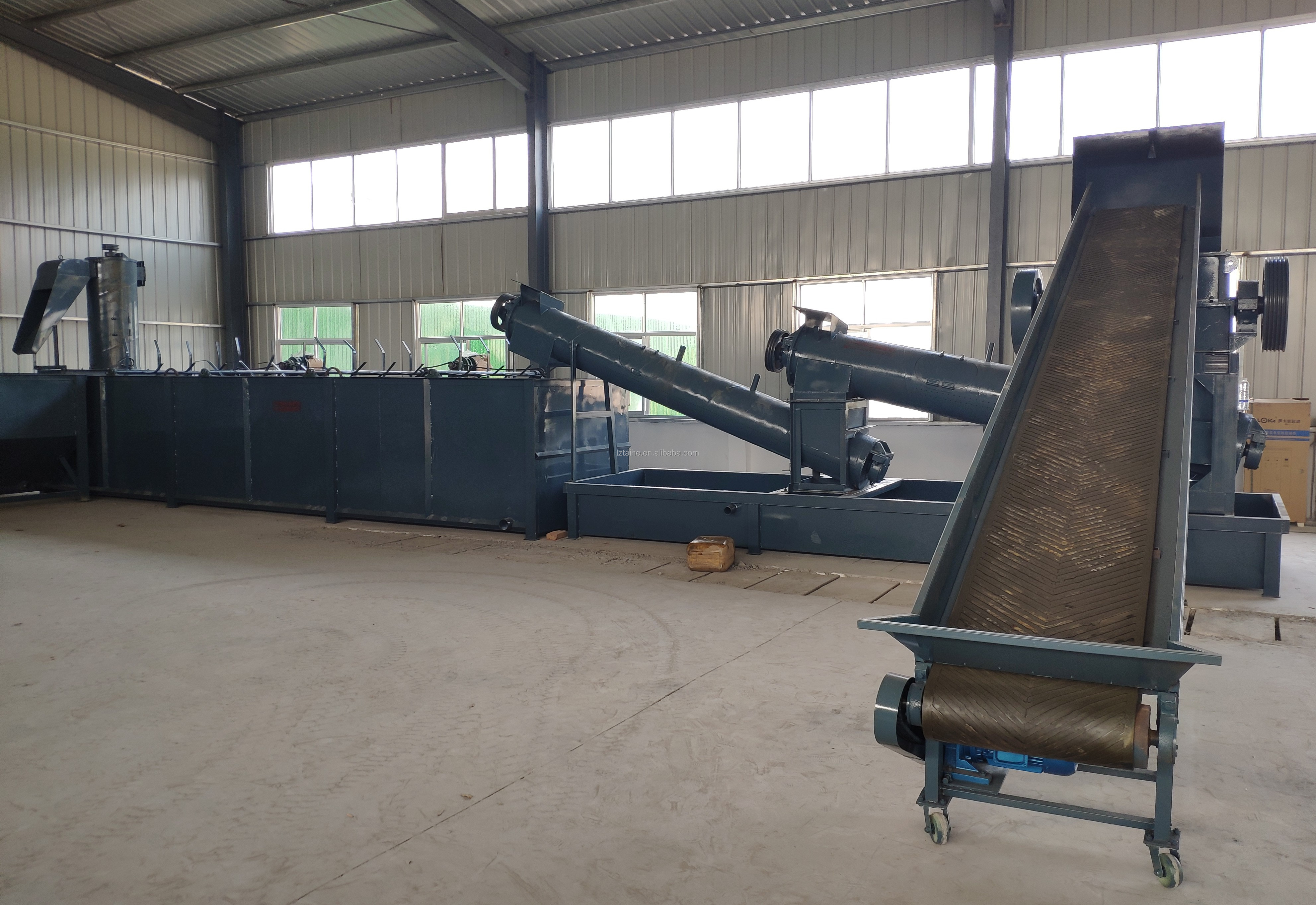

Plastic crushing washing recycling machine
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
plastic granulator
S / N
Item Name
Function
1
Conveyor
Feeding material
2
Crusher
Crushing the material into small size
3
Friction Washing Machine
Washing out the sand, soil and loading the material
4
Floating Washing Tank
Floating washing separate the sand,soil and other dirties
5
2nd Floating Washing Tank (self-selection)
Floating washing separate the sand,soil and other dirties

Plastic crusher with conveyor and friction washing machine

500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film

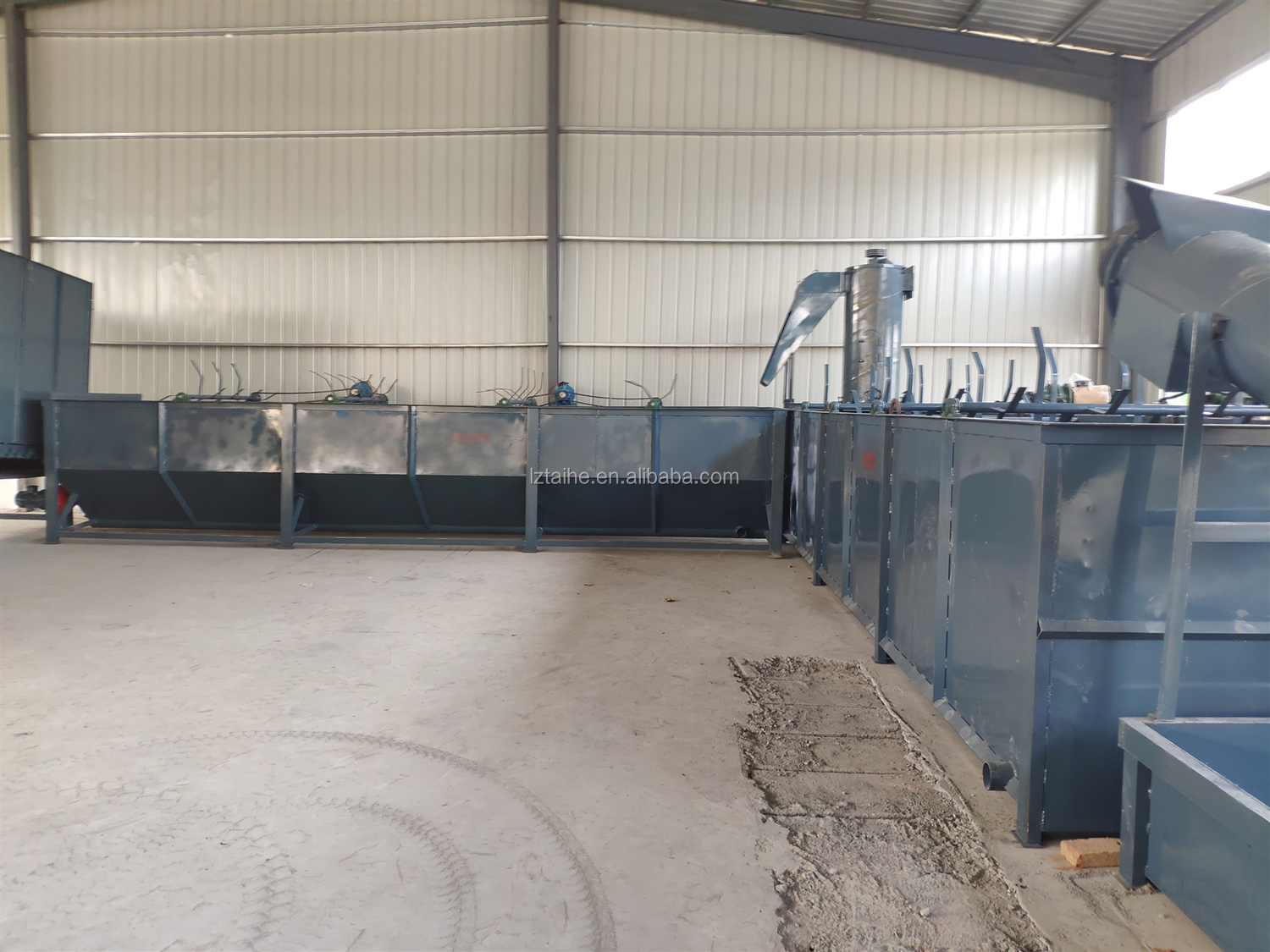

Floating washing tank
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
Details Images

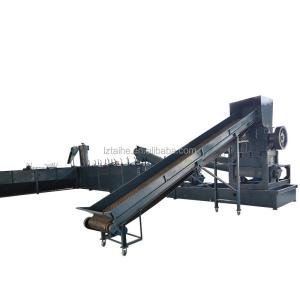

PP PE Plastic recycling machine
capacity: 500kg/h (we still have more)
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
Conveyor
Belt width: 0.4m
Delivery length: 4m
Motor power: 1.5kw
Speed: 25r/min

Can be customized.
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film

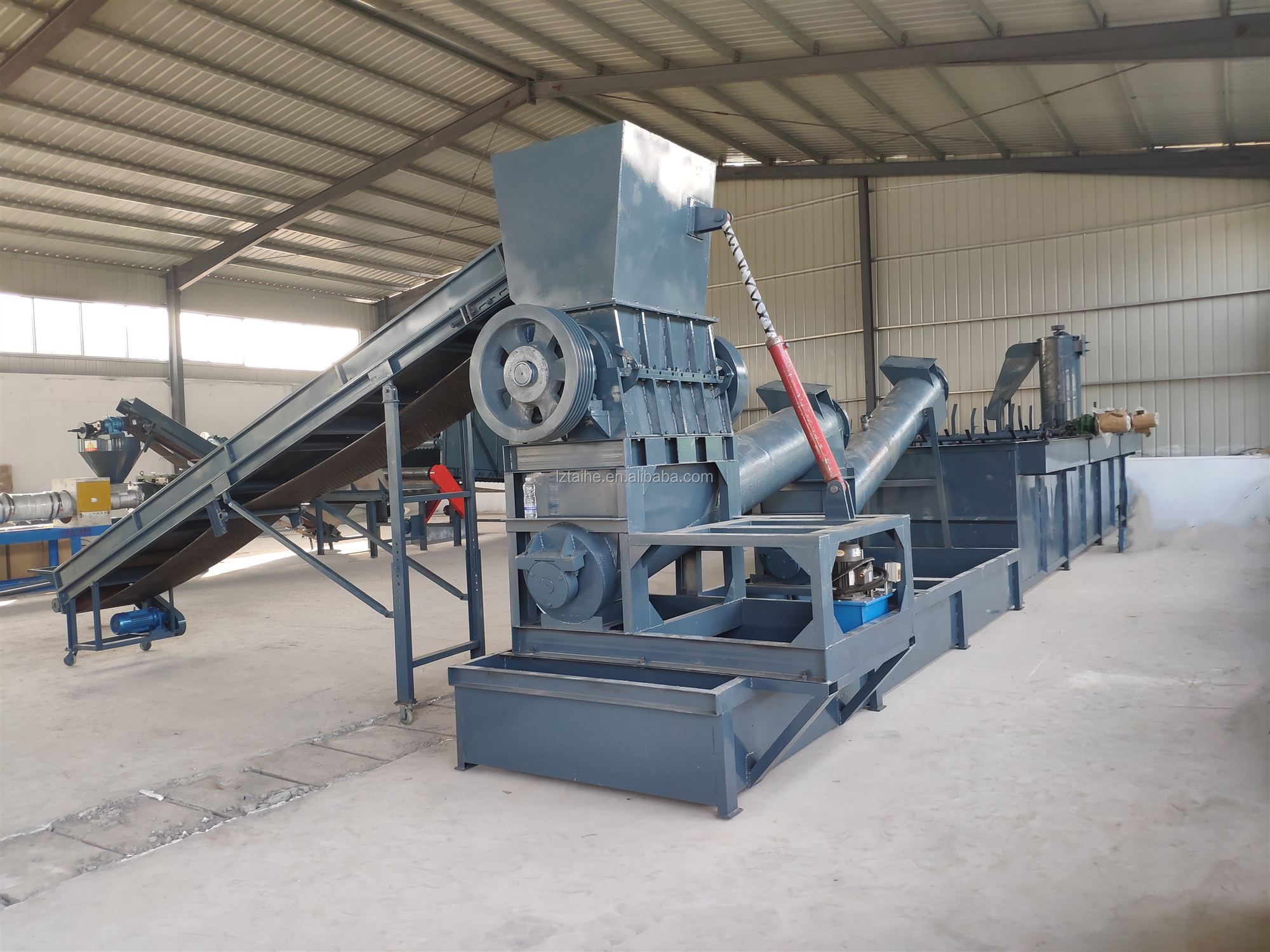

Plastic crushing machine with friction washing machine

Crusher: 450type
Motor power: 22kw

rotary blade: 3pcs
stationary blade: 2pcs


Friction washing machine: L: 2.5m, D: 273mm

motor power: 7.5KW

Can be customized.

500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film
Floating washing tank
L * W * H: 8 m * 1.2 m * 1 m
Kick-out device: 3pcs
Vertical material lift dryer: 1pc
Motor power: 7.5KW.

Can be customized.
500-2500kg/H Output Plastic Recycling Machine For Washing Plant PP Woven Bags PE Film

Horizontal dewatering machine

Cylinder diameter: 700mm
Effective length: 2500mm
Motor power: 22kw
Speed: about 1200rpm
Dehydration rate: not less than 80%
Production capacity: 800-1000kg/h

Plastic Machinery :


Plastic granulators , Plastic crushing machine , Plastic crushing machine with friction washing machine, Baling press machine .

Plastic recycling machine, PET recycling machines , Recycle washing line, PP PE crushing washing dewatering and baling product line .

Plastic auxiliary machine and so on.

Technical Parameters
Model
Capacity
Conveyor
Crusher's model
Friction washing machine
Floating tank's model
SW-500
500kg/h
L: 4m, W: 0.4m
450 , motor power: 22kw
L: 2.5m, D: 273mm
L: 8m, W: 1.2m, H: 1m
SW-1000
1000kg/h
L: 6m, W: 0.5m
600 , motor power: 30kw
L: 2.5m, D: 377mm
L: 8m, W: 1.2m, H: 1m
SW-2000
2000kg/h
L: 6m, W: 0.6m
800 , motor power: 45kw
L: 3m, D: 377mm
L: 8m, W: 1.2m, H: 1m
SW-2500
2500kg/h
L: 6m, W: 0.8m
1000 , motor power: 55kw
L:3.5m, D: 420mm
L:8m, W: 1.2m, H: 1m
Remarks
It can be customized to meet your requirement
